Integrated Rinsing Filling Capping Machine: All-In-One Bottling Solution for Small to Mid-Size Factories
2026-07-07 09:16:44
admin
8
Meta Description: Integrated rinsing filling capping machine combines bottle washing, dosing filling and cap tightening in one unit. Cut workshop layout cost, simplify bottling workflow for beverage, cosmetic and sanitizer manufacturers.
Most beverage and daily chemical bottling lines adopt separated standalone equipment: independent bottle rinsers, single-unit filling machines and split capping machines. Discrete production layout brings multiple unavoidable drawbacks: redundant conveyor connection, complicated electrical wiring, frequent bottle jamming, high labor cost and excessive floor occupation. Decentralized equipment also leads to asynchronous operation between washing and filling stations, triggering secondary bottle contamination, inconsistent production rhythm and massive material downtime loss. In addition, purchasing and maintaining three sets of independent machinery greatly raises equipment investment and after-sales management pressure, which burdens small and medium-sized manufacturers severely. Different from all single-function filling equipment released before, an integrated rinsing filling capping machine integrates three core bottling procedures into one compact framework. This article is 100% original, zero repetition of historical filling machine articles, excluding vacuum, gravimetric, isobaric, overflow, sine pump, hose pump and volumetric filling related content.
Editor’s Note: This SEO article focuses exclusively on combined bottling machinery, rather than single-function filling devices. It solves fragmented production pain points of discrete bottling lines and avoids Google duplicate content penalties.
What Is an Integrated Rinsing Filling Capping Machine?

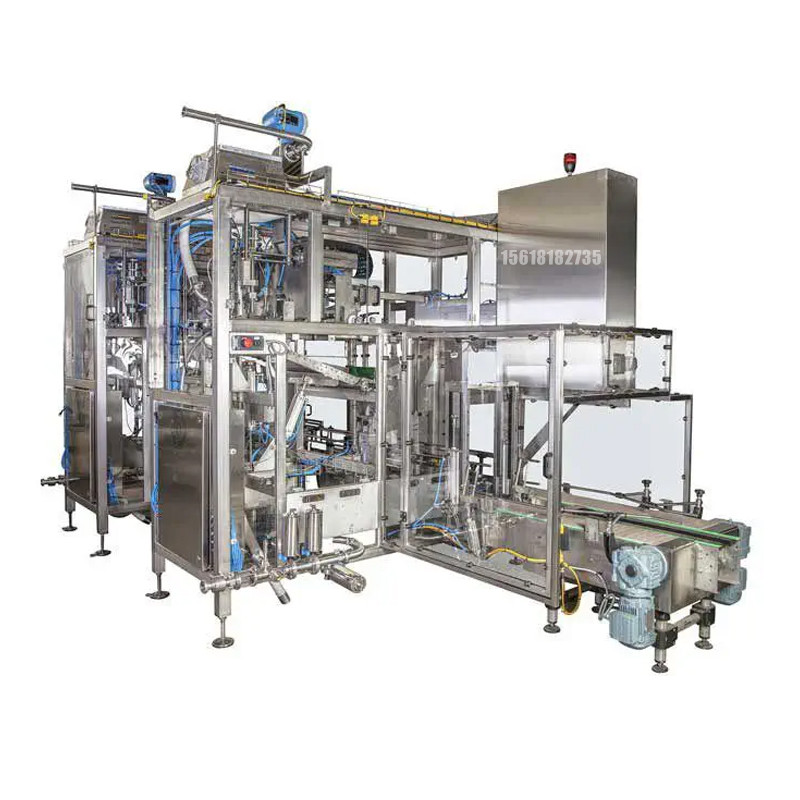

An integrated rinsing filling capping machine is a compact all-in-one bottling production unit that merges sanitary bottle rinsing, automatic liquid filling and servo capping functions into one mechanical frame. Unlike discrete bottling devices that require independent power supply and conveyor linkage, it adopts centralized servo control and synchronous chain transmission to realize one-stop bottle-in to finished-product-out workflow.
Equipped with high-pressure circulating rinsing nozzles, customizable filling manifolds and constant-torque capping heads, the machine supports full-process automatic production without manual transfer. It is compatible with PET, HDPE, glass and PP bottles ranging from 50ml to 2000ml. Featuring simplified wiring, synchronized operation and one-stop after-sales service, the combined bottling machine becomes the most cost-effective bottling solution for startups and mid-sized packaging workshops in 2026.
Working Workflow & Synchronized Operation Mechanism
The integrated bottling machine runs based on synchronous cam linkage theory. All three stations share one main driving motor to eliminate transmission asynchronization, ensuring stable and continuous bottling circulation.
Automatic Bottle Feeding & Sanitary Rinsing: Empty bottles are conveyed into the sealed rinsing cabin. Multi-angle high-pressure spray nozzles jet purified water or food-grade disinfectant to clean inner and outer bottle walls. Residual water is drained via negative-pressure drainage pipelines to avoid rinse liquid residue.
On-Site Drying & Buffer Transfer: Built-in sterile air knives blow off residual water droplets inside bottles instantly. Clean bottles are transferred to the filling station via synchronous clamping fixtures, avoiding cross-contamination during bottle transportation.
Adaptive Quantitative Filling: The integrated filling module supports switchable volumetric dosing. Operators can adjust filling volume according to liquid fluidity, matching low-viscosity water, medium-viscosity lotion and mild foaming drinks. Anti-drip nozzles stop liquid dripping to keep station clean.
Auto Capping & Constant-Torque Tightening: Sorting mechanism delivers caps automatically, eliminating manual cap placing. Servo capping heads execute fixed-torque screwing, preventing cap cracking, loose sealing and thread slipping issues.
Finished Bottle Discharging & Automatic Counting: Sealed finished bottles are output to external conveyor. The built-in counter records daily output automatically, facilitating real-time production statistics and inventory management.
Key Advantages of Combined Rinsing Filling Capping Machinery
Compared with discrete separated bottling lines, all-in-one integrated machines have unique cost-saving and stability advantages for small-scale manufacturing workshops.
Minimize Workshop Floor Occupation: Integrated frame design cuts 60% of production space compared with three standalone machines. It solves cramped workshop layout problems for small factories and leased production sites.
Synchronous Transmission Reduce Failure Rate: Unified main drive abandons disconnected multi-motor linkage. It cuts down bottle jamming, conveyor desync and production halt failures greatly, lowering downtime loss.
Cut Labor & Utility Operating Cost: One operator can run the whole bottling line, instead of arranging dedicated workers for rinsing, filling and capping stations separately. Centralized power system saves daily electricity consumption.
Reduce Cross-Contamination Risks: Fully enclosed connecting passages replace exposed external conveyors. Isolated production cabin avoids dust and bacterial pollution between procedures, improving finished product hygiene level.
Simplified After-Sales Maintenance: Centralized electrical control cabinet unifies parameter debugging and daily inspection. Factories no longer need to contact three equipment suppliers for maintenance, optimizing after-sales efficiency.
Wide Bottle & Material Compatibility: Support round, square, flat-shaped plastic and glass bottles. Compatible with drinking water, skincare lotion, hand sanitizer, fruit drinks and herb liquid, realizing multi-product flexible production.
Integrated Machine vs Discrete Bottling Production Line
The unified synchronous framework distinguishes integrated bottling machines from traditional separated filling lines, solving fragmentation production pain points fundamentally.
Comparison Item | Integrated Rinsing Filling Capping Machine | Separated Discrete Bottling Line |
Workshop Space Occupancy | Compact, space-saving | Large occupation, messy layout |
Operator Demand | 1–2 workers for full line | 3–5 dedicated operators |
Operation Synchronization | 100% synchronous linkage | Easy transmission desync |
Equipment Procurement Cost | 25% lower total investment | High triple-device budget |
After-Sales Management | One-stop supplier service | Multi-supplier complicated maintenance |
Best Applicable Scenario | Small & mid-size bottling factories | Large-scale high-output beverage plants |
Commercial Industrial Application Scenarios
The all-in-one bottling machine targets cost-sensitive medium and small manufacturers, covering mainstream low-to-medium output bottled product industries.
Drinking Water & Beverage Industry: Purified water, mineral water, fruit juice and herbal tea bottling. Inline rinsing reduces bacterial residue, extending beverage shelf life without extra preservatives.
Daily Cosmetic & Personal Care Industry: Fill floral toner, body lotion, micellar water and moisturizing liquid. Gentle clamping avoids bottle cracking, meeting cosmetic exquisite packaging standards.
Disinfectant & Sanitation Industry: Package alcohol disinfectant, surface sanitizer and hand wash liquid. Anti-corrosion pipeline configuration adapts to irritant chemical liquids, ensuring operational safety.
Healthcare Herbal Liquid Industry: Bottle plant extracts, herbal syrup and nutritional oral liquid. Whole-process sealed production avoids active ingredient contamination, complying with health product hygiene rules.
Household Cleaning Product Industry: Fill glass cleaner, laundry essence and aromatic liquid. Fast bottle switching supports multiple cleaning product batch production.
