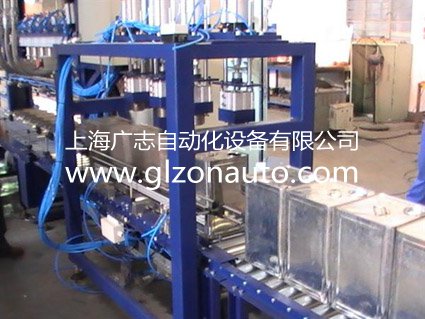

全不锈钢防腐防爆液体灌装机
资讯来源: www.glzonauto.com 人气:发表时间:2019-10-11
、技术参数
灌装容量: 300kg(200L)/桶;
灌装精度:0.2%;
额定速度:1-2桶/分 , (与来料粘度、速度有关);
称量装置:0大称量300kg,分度值d:100g;
基础条件:水平的坚固混凝土地面,混凝土厚度应大于15cm。
温度范围:-10 ℃~+45 ℃。
相对湿度:< 95% (无冷凝)。
电 源: 电源220V,50HZ,1.0kw。
工作气源:气压0.5MPa±0.1Mpa,耗气量:10m3/h。
物料接口: DN50 PN1.6Mpa (HG20592-97),可按用户提供接口标准。
物料进口压力: (0.2~0.6)Mpa(与料性有关)。
气源接口:用户提供G1/2内螺纹,用于快速接头连接。
二、主要特点
桶内液面下灌装,防爆称重装置,防爆等级:ExiadIIBT4;
快、慢双速自动定量灌装—-大大提高了灌装精度和生产能力;
气动底阀及接液杯的设计—-0大限度地减少灌注完毕时残液的滴漏;
定量灌装的自动和手动方式可选择—-方便操作及维修;
自动去皮功能—-克服了灌装容器重量不致的因素对精度的影响;
定值点可调节—-适应多种重量范围的定量灌装;
自动诊断,故障告警—-提高系统工作的可靠程度;
安全检查—-桶到位,喷阀放下;
自锁控制—-在灌注以前,检测喷阀到位后方允许灌装;
提前量自动修正—-每次称量后自动修正提前量值,保证灌装精度;
允差检测—-自动检测满灌的误差;
Explosion-Proof/Pivoting pallet filling equipment
Liquid Filling Machine is mainly used in industries such as coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fineness chemical etc. It is suitable for filling liquid, ointment products.
Features:
· Possible to change the set of the filling quantity freely
· Possible precise 2-shift filling and possible to precisely adjust the 2nd shift filling flow quantity
· Gross/Net filling mode
· 30 groups filling parameters for different products can be generated
· Plug-in perfusion with filling nozzle, avoid liquid splashing drums
· Reaching the filling target amount, the filling nozzle automatically lifting
· The filling nozzle lifting automatically, when the filling nozzle not inserted drums
· Unique anti-drip device, avoiding the liquid dropping on the drums
· Filling nozzle and pipes using quick coupling, convenient for removing and washing
· The system uses MITSUBISHI/SIEMENS PLC, safe and reliable
· Filling with one button(Automatic operation mode)
· Press manual(Manual operation mode)
· The part contacting with materials is SS304 or SS316
· Automatically recognize the empty drum tare. No drum not filling
· Gravity roller conveyors
Application Sites
· Filling 60L, 100L, and 200L drums and filling IBC and POLY TANK
· Directly filling the drums stocked on the pallet
· Resin, solvent, and varnish products
· Food and beverage products such as liquid sugar, cooking oil, and resin
· Liquid chemicals
Specifications
· Max. Capacity : 300kg X 4drums
· Division:0.2kg/drum
· Filling Capacity : 100~1200kg
· Filling Accuracy : ≤ 0.1%
· Filling Speed : 40~60 Drum/hr
· Up/Down Rang: 0-50mm(H)
· Platform: 1300X1300mm
· Barrel Dimension: ≤φ600×h950mm
· Air Pressure : 0.4~0.8Mpa
· Filling Valve:Material:SUS304/316
· Power: AC 110V/220V, 50/60Hz, 10A
· Operating Temperature:-10°C to 40°C
OPTION:
Roller Track: 1500X1300mm
主要参数:
型 号 GZM-10 GZM-50 GZM-90 GZM-300
0大称量 10kg 50kg 90kg 300kg
定量范围 5-10kg 10-50kg 50-90kg 100-300kg
灌装精度 ±0.2% ±0.2% ±0.2% ±0.2%
灌装速度 100-180桶/小时 100-180桶/小时 50-100桶/小时 40-65桶/小时
电 源 AC220/380V50Hz AC220/380V50Hz
使用气压 0.4-0.6Mpa
耗 气 量 1.5m3/h
进 料 口 DN50
控制方式 半自动控制
输送方式 桶采用手动输送方式
阀门材料 SUS-304(可选SUS-316)
构 件 表面喷砂处理(可选:SUS-304)
毛 重 150-300kg
如果需要更多资料,请联系电话:13621865316 QQ:1837258586 联系人:张克跃 网站:http://www.cas-china.net/ 网站:http://www.mtscale.com/ 我们会为您提供更详细的资料。
http://www.sh-cas.com/
http://www.sh-cas.com/
